Product Description
LT-P24S007 | 14S‑24S 30A BMS for Lithium‑ion Battery Packs
Common Ports | NTC Thermal Sensor | E‑Switch | Compact 60×120mm
The LT-P24S007 Battery Management System (BMS) is a high‑performance solution designed for 14S to 24S lithium‑ion battery packs – covering nominal voltages from 52V to 88V (14S‑24S). With a 30A continuous discharge rating, common ports for charging/discharging, and a compact 60×120mm footprint, it delivers robust protection and precise control. Equipped with an NTC thermal sensor, an E‑switch, and comprehensive protections (over‑charge, over‑discharge, over‑current, over‑temperature, short circuit), this BMS is ideal for high‑voltage electric bicycles, electric scooters, energy storage systems, and light electric vehicles.
⚙️ Key Features
🔋 Wide Voltage Range
Supports 14S to 24S Li‑ion configurations (52V – 88V nominal), providing flexibility for high‑voltage battery packs.
⚡ 30A Continuous Discharge
30A continuous current capability delivers reliable power for high‑performance e‑bikes, scooters, and energy storage applications.
🔌 Common Ports
Same port for charging and discharging simplifies wiring and reduces connector requirements, ideal for space‑constrained battery enclosures.
🌡️ NTC Thermal Sensor
Built‑in NTC thermistor provides accurate temperature monitoring, preventing overheating and extending battery life.
🔘 E‑Switch for Easy Control
Integrated E‑switch allows convenient power on/off control, simplifying battery management and enhancing user experience.
🛡️ Comprehensive Protections
Over‑charge, over‑discharge, over‑current, short circuit, and over‑temperature protections ensure maximum safety and reliability.
📦 Compact Size
Dimensions: 60 × 120 mm – fits easily into battery enclosures for e‑bikes, scooters, and custom packs.
📊 Technical Specifications
- Model: LT-P24S007
- Cell Series Support: 14S – 24S Li‑ion (52V – 88V)
- Continuous Discharge Current: 30A
- Charge Current: Configurable (common port)
- Temperature Sensing: NTC thermistor (10kΩ)
- Control: E‑switch (power on/off)
- Protections: Over‑charge, over‑discharge, over‑current, short circuit, over‑temperature
- Balancing: Passive balancing
- Dimensions (L×W): 60 × 120 mm
- Operating Temperature: -20°C to 70°C
🔋 Applications
🚲 High‑Voltage Electric Bicycles
Ideal for 52V, 60V, 72V, and 84V e‑bike battery packs, providing reliable protection and control.
🛴 Electric Scooters & Motorcycles
Perfect for high‑voltage scooters and light EVs requiring 30A continuous current.
🔋 Energy Storage Systems (ESS)
Suitable for 48V–96V lithium battery banks in residential and commercial storage applications.
⚙️ Custom Battery Packs
Excellent choice for DIY builders creating high‑voltage Li‑ion packs for various industrial or recreational uses.

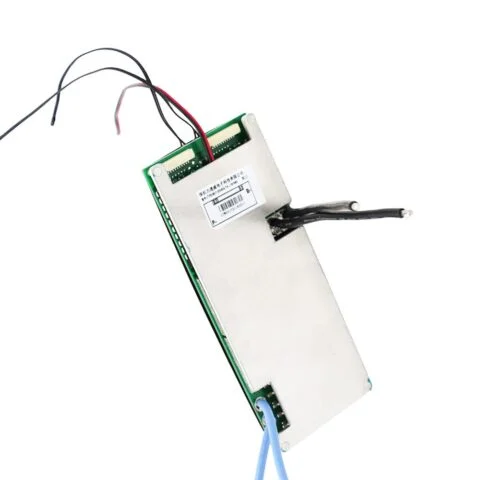

🖼️ Product Gallery
We offer OEM/ODM services for the LT-P24S007 platform – customize current ratings, cell series (up to 24S), and physical layout. Contact our engineering team for sample requests, technical documentation, and volume pricing.
