Product Description
P24S011 | 5S‑24S 100A BMS for LiFePO₄ & Li‑ion Batteries
Passive Balancing | NTC Thermal Sensors | Low Self‑Consumption | Compact 100×160mm
The P24S011 Battery Management System (BMS) is a robust hardware solution designed for 5S to 24S lithium‑ion and LiFePO₄ battery packs, covering voltages from 12V to 96V. With a 100A continuous discharge rating, passive balancing, NTC thermal sensors, and comprehensive protections (over‑charge, over‑discharge, over‑current, over‑voltage), it delivers reliable management for high‑power applications. Its compact 100×160mm size makes it ideal for electric tricycles, golf carts, electric motorcycles, and energy storage systems.
⚙️ Key Features
🔋 Wide Voltage Range – 5S to 24S
Supports 5S through 24S Li‑ion or LiFePO₄ configurations (12V – 96V), providing exceptional flexibility for various battery pack sizes and chemistries.
⚡ 100A Continuous Discharge
100A continuous current capability makes it suitable for high‑power applications including electric tricycles, golf carts, and electric motorcycles.
⚖️ Passive Balancing
Maintains uniform charge levels across individual cells, maximizing pack capacity and extending overall battery lifespan.
🌡️ NTC Thermal Sensors & Temperature Protection
Integrated NTC thermistors monitor battery temperature in real time. High/low temperature protection prevents operation outside safe ranges, ensuring safety and longevity.
🔋 Low Self‑Consumption
Minimizes power draw from the battery pack, optimizing energy efficiency and extending operating time between charges.
🛡️ Multi‑Protections (Charging & Discharging)
Over‑charge, over‑discharge, over‑current, and over‑voltage protections safeguard the battery pack and connected system against potential risks.
📦 Compact Size
Dimensions: 100 × 160 mm – fits into standard battery enclosures for electric vehicles and energy storage racks.
📊 Technical Specifications
- Model: P24S011
- Cell Series Support: 5S – 24S (Li‑ion / LiFePO₄)
- Continuous Discharge Current: 100A
- Balancing: Passive balancing
- Temperature Sensing: NTC thermistors (high/low temperature protection)
- Protections: Over‑charge, over‑discharge, over‑current, over‑voltage
- Self‑Consumption: Ultra‑low (optimized for energy efficiency)
- Dimensions (L×W): 100 × 160 mm
- Operating Temperature: -20°C to 70°C
🔋 Applications
🛺 Electric Tricycles
Ideal for cargo and passenger electric tricycles requiring robust 100A current handling and wide voltage flexibility.
🏌️ Golf Carts & Utility Vehicles
Perfect for 48V–72V lithium golf cart batteries, providing reliable protection and passive balancing.
🏍️ Electric Motorcycles & Scooters
Suitable for high‑power 72V–96V e‑motorcycles and scooters needing 100A continuous discharge.
🔋 Energy Storage Systems (ESS)
Great for 24V, 48V, and 96V lithium battery banks in residential and commercial storage applications.

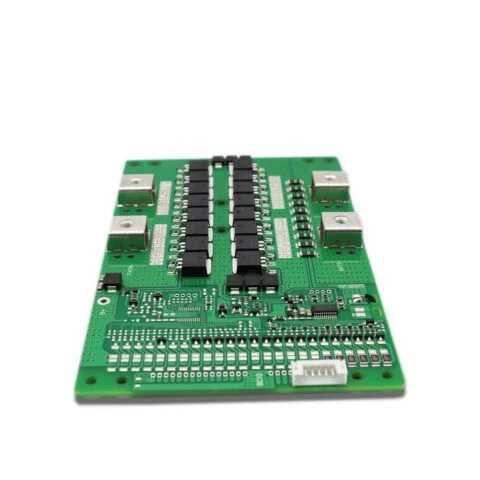

🖼️ Product Gallery
We offer OEM/ODM services for the P24S011 platform – customize current ratings, cell series (5S‑24S), and physical layout. Contact our engineering team for sample requests, technical documentation, and volume pricing.
