Product Description

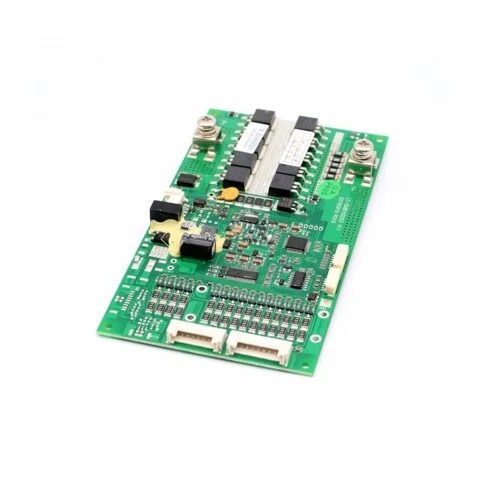

EMB16S003 | 16S 48V 40A CAN/RS485 Smart BMS
For Li‑ion / LiFePO₄ Batteries | 7S‑16S | CAN & RS485 | AFE TI BQ Series + MCU
The EMB16S003 is a versatile smart Battery Management System (BMS) designed for 7S to 16S lithium‑ion and LiFePO₄ battery packs, covering nominal voltages from 24V to 48V (and up to 60V with 16S). With 40A continuous discharge current, dual communication interfaces (CAN and RS485), and advanced AFE TI BQ Series + MCU architecture, it delivers precise monitoring, robust protection, and flexible system integration. Ideal for e‑bikes, energy storage systems (ESS), electric vehicles, and industrial battery packs, this BMS includes SOC/SOH fuel gauging, adjustable parameters, E‑switch, sleep mode, and comprehensive fault protections.
📡 General Info
The EMB16S003 BMS is a high‑performance, software‑configurable solution supporting 7S to 16S Li‑ion or LiFePO₄ cells. It features CAN (Controller Area Network) and RS485 communication interfaces, enabling real‑time monitoring of battery voltage, current, capacity (SOC), and health (SOH) via external displays, vehicle controllers, or central monitoring systems. The compact 146mm × 80mm form factor allows easy integration into battery enclosures for e‑bikes, energy storage racks, and other space‑constrained applications.
⚙️ Key Parameters
- Model: EMB16S003
- Cell Series Support: 7S – 16S (Li‑ion / LiFePO₄)
- Maximum Voltage: 16S Li‑ion (67.2V), 16S LiFePO₄ (58.4V)
- Continuous Discharge Current: ≤40A
- Communication Interfaces: CAN (CAN 2.0), RS485
- Monitoring: Real‑time voltage, current, SOC, SOH
- Controller: AFE TI BQ Series + MCU
- Adjustable Parameters: Voltage thresholds, current limits, protection delays
- Additional Functions: E‑switch, sleep mode, SOC fuel gauge, SOH indicator
- Dimensions (L×W): 146 × 80 mm
- Working Temperature: -20°C to 70°C
🔋 Key Features & Functions
📡 Dual Communication: CAN & RS485
Flexible interface options allow seamless integration with automotive CAN networks or industrial RS485 systems. Real‑time data exchange for precise monitoring.
⚡ 40A Continuous Discharge
40A continuous current capability supports a wide range of applications, from e‑bikes to small energy storage systems.
🧠 AFE TI BQ Series + MCU
Texas Instruments Analog Front‑End combined with a powerful MCU ensures high‑precision measurement and reliable control.
⚙️ Adjustable Parameters
Customize voltage thresholds, current limits, and protection settings to match specific battery chemistries and application needs.
📊 SOC Fuel Gauge & SOH Monitoring
Accurate State of Charge and State of Health estimation for optimal battery utilization and predictive maintenance.
🔘 E‑Switch & Sleep Mode
Convenient power control and ultra‑low power consumption during standby, preserving battery energy.
🛡️ Comprehensive Protections
Over‑charge, over‑discharge, over‑current, short circuit, high‑temperature, and low‑temperature protections ensure safety and longevity.
📦 Compact Form Factor
Size: 146 × 80 mm — designed for easy integration into battery enclosures and equipment racks.
🔧 Applications
🚲 Electric Bikes & Scooters
Optimized for 48V e‑bike battery packs, delivering reliable management and real‑time data via CAN or RS485.
🔋 Energy Storage Systems (ESS)
Ideal for residential and commercial lithium battery storage with scalable communication options.
⚡ Electric Vehicles (EVs)
Suitable for light EVs, golf carts, and utility vehicles requiring 40A continuous current and CAN bus integration.
⚙️ Industrial & Backup Power
Reliable BMS for telecom backup, UPS systems, and off‑grid power solutions.
🖼️ Product Gallery
We offer OEM/ODM services for the EMB16S003 platform – customize current ratings, communication protocols (CAN/RS485), and physical layout. Contact our engineering team for sample requests, technical documentation, and volume pricing.
