Product Description
E15 24V 30A AGV Charger β IP65 Fast Charging for Automated Guided Vehicles & Floor Scrubbers
π AGV / Automated Guided Vehicle
π§Ή Floor Scrubber / Sweeper
π§ IP65 Waterproof
π Aluminum Die-Cast
π 8S Li-ion / Lead-Acid / LiFePO4
The E15 24V 30A AGV Charger is a rugged, high-efficiency battery charger specifically engineered for automated guided vehicles (AGVs), autonomous mobile robots (AMRs), floor scrubbers, sweepers, and industrial material handling equipment. With an IP65-rated aluminum die-cast casing, it withstands dust, moisture, and industrial washdowns. Delivering a powerful 30A at 24V nominal (29.4V for Li-ion), it rapidly charges 8S Li-ion, LiFePO4, and lead-acid battery packs, maximizing uptime for 24/7 automated operations.
βοΈ Technical Specifications & Multi-Layer Protections
100-240VAC (50/60Hz) β universal input. Output power derates when input below 120Vac.
Aluminum die-casting | IP65 waterproof (dust-tight, protected against low-pressure water jets) | Operating temp: -20Β°C to +50Β°C
π‘οΈ Built-in Protections
Input over-voltage
Overheat protection
Output overcurrent
Output overvoltage
Short circuit protection
Reverse polarity (optional)
Optional CANBUS or RS485 communication for BMS integration, real-time voltage/current monitoring, remote start/stop, and fleet charge management β essential for AGV fleets.
π Battery Compatibility & Output Reference Table
Based on battery chemistry, cell configuration, and capacity, the E15/E22 platform supports various nominal voltages. The table below lists typical charging voltages for reference. The E15 24V 30A model is factory-optimized for 24V systems (8S Li-ion / 8S LiFePO4 / 24V lead-acid) with 30A output. Other voltages available upon request.
| Rated Voltage | Lead Acid Battery | LiFePO4 Battery | Lithium ion Battery | Charge Current @220Vac (Reference) |
|---|---|---|---|---|
| Current (A) | ||||
| 12V | 14.7V | 14.6V | 16.8V | 30A |
| 24V | 29.4V | 29.2V | 29.4V | 30A (E15 optimized) |
| 36V | 44.1V | 43.8V | 42.0V | 30A |
| 48V | 58.8V | 58.4V | 58.8V | 25A |
| 60V | 73.5V | 73.0V | 67.2V | 20A |
| 72V | 88.2V | 87.6V | 84.0V | 15A |
| 84V | 102.9V | 102.2V | 100.8V | 12A |
| 96V | 117.6V | 116.8V | 117.6V | 10A |

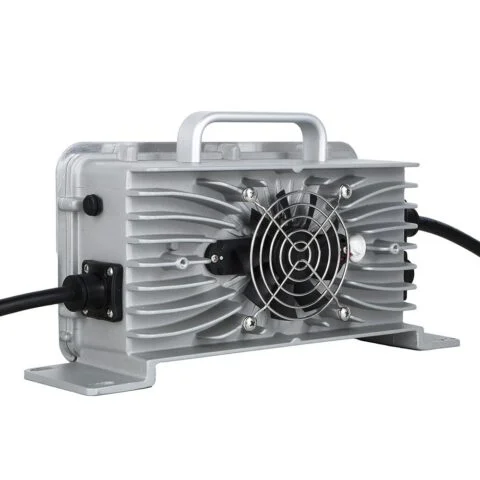

πΈ Product Gallery β E15 24V 30A AGV & Scrubber Charger
π Flexible AC & DC Connectivity
AC plug options: Customizable to meet regional standards (US, EU, AU, UK, ZA, BR, DK, CH, IL, IT, etc.). The length and wire diameter of the AC cable are optional; if no special requirements, appropriate specifications will be matched to the model.
DC cable & connector: Fully customizable length and wire gauge (e.g., 10AWG for 30A). Customers may also provide their own connectors β we will match with strain relief and waterproof sealing. Standard options include Anderson SB50, REMA, or ring terminals for secure high-current connection.
π€ Optimized for AGVs, AMRs & Floor Care Equipment
- Automated Guided Vehicles (AGVs) β 30A fast charging enables opportunity charging during short breaks, keeping fleets running 24/7.
- Autonomous Mobile Robots (AMRs) β Compact, rugged design fits into robotic charging stations.
- Floor Scrubbers & Sweepers β IP65 rating withstands water spray and cleaning chemicals.
- Electric Forklifts (24V pallet jacks) β Reliable charging for warehouse logistics.
- Industrial Tuggers & Tow Tractors β High-current charging reduces battery swap frequency.
- Mobile Lifting Platforms & Scissor Lifts β Durable solution for construction and industrial sites.
π‘ Why Choose the E15 24V 30A AGV Charger?
- β True 30A output at 24V β Over 700W charging power, minimizes vehicle downtime.
- β IP65 aluminum die-cast housing β Dust-tight and protected against water jets β ideal for industrial cleaning and warehouse environments.
- β Universal 100-240VAC input β Global compatibility for multi-site fleets.
- β Multi-chemistry support β Lead-Acid, LiFePO4, Lithium-ion with programmable CC/CV algorithms.
- β Safety certified β Overload, overheat, short circuit, and reverse polarity protection.
- β Optional CAN/RS485 communication β Seamless integration with AGV fleet management systems, BMS, and charging stations.
- β Compact & vibration-resistant β Designed for onboard or stationary charging infrastructure.
