Product Description
E22 72V 25A Golf Cart Charger β IP65 Rated Lithium & Lead-Acid Fast Charger
ποΈ Golf Carts / Sightseeing Vehicles
π§ IP65 Waterproof
π Aluminum Die-Cast
π LiFePO4 / Lead-Acid / Li-ion
The E22 72V 25A Golf Cart Charger is a high-performance, rugged battery charger specifically designed for golf carts, sightseeing vehicles, patrol cars, and electric utility vehicles. Built with an IP65-rated aluminum die-cast casing, it withstands dust, water jets, and outdoor conditions. Delivering a powerful 25A output at 72V nominal, it significantly reduces charging time for large battery packs (up to 200Ah). Compatible with Lead-Acid, LiFePO4, and Lithium-ion (NMC) batteries, it ensures safe, efficient, and long-lasting charging for fleet and recreational vehicles.
βοΈ Technical Specifications & Multi-Layer Protections
100-240VAC (50/60Hz) β universal input. Output power derates when input below 120Vac.
Aluminum die-casting | IP65 waterproof (dust-tight, protected against low-pressure water jets) | Operating temp: -20Β°C to +50Β°C
Input over-voltage
Overheat protection
Output overcurrent
Output overvoltage
Short circuit protection
Reverse polarity (optional)
Optional CANBUS or RS485 communication for BMS integration, remote monitoring, and dynamic charge control β perfect for fleet management and smart golf courses.
π Battery Compatibility & Output Reference Table
Based on battery chemistry, cell configuration, and capacity, the E22 platform supports various nominal voltages. The table below lists typical charging voltages for reference. For the 72V 25A model, maximum output current is 25A at 72V (custom configuration). The standard table shows 15A for 72V; our E22-72V/25A variant provides upgraded 25A output.
| Rated Voltage | Lead Acid Battery | LiFePO4 Battery | Lithium ion Battery | Standard Charge Current @220Vac (Reference) |
|---|---|---|---|---|
| Current (A) | ||||
| 12V | 14.7V | 14.6V | 16.8V | 30A |
| 24V | 29.4V | 29.2V | 29.4V | 30A |
| 36V | 44.1V | 43.8V | 42.0V | 30A |
| 48V | 58.8V | 58.4V | 58.8V | 25A |
| 60V | 73.5V | 73.0V | 67.2V | 20A |
| 72V | 88.2V | 87.6V | 84.0V | 15A (Standard) β 25A available with E22-72V/25A model |
| 84V | 102.9V | 102.2V | 100.8V | 12A |
| 96V | 117.6V | 116.8V | 117.6V | 10A |

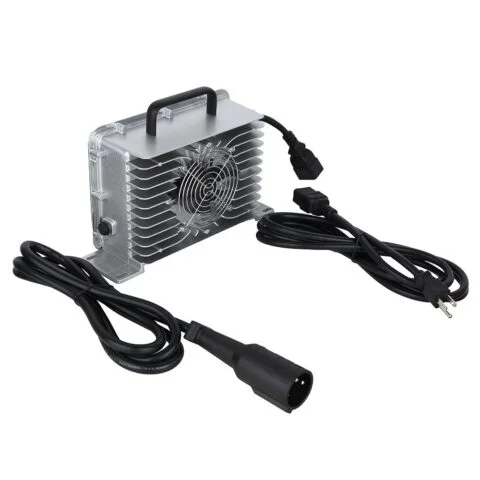

πΈ Product Gallery β E22 72V 25A Series
π Flexible AC & DC Connectivity
AC plug options: Customizable to meet regional standards (US, EU, AU, UK, ZA, BR, DK, CH, IL, IT, etc.). The length and wire diameter of the AC cable are optional; if no special requirements, appropriate specifications will be matched to the model.
DC cable & connector: Fully customizable length and wire gauge (e.g., 8AWG for 25A). Customers may also provide their own connectors β we will match with strain relief and waterproof sealing. Standard options include Anderson SB50, REMA, or ring terminals for secure high-current connection.
ποΈ Optimized for Golf Carts, Sightseeing & Patrol Vehicles
- Golf Carts (48V/72V) β 25A fast charging reduces downtime between rounds, extends battery life with precise CC/CV profile.
- Sightseeing Vehicles & Shuttles β IP65 protection withstands outdoor exposure and frequent washing.
- Patrol Cars & Security Carts β Rugged aluminum housing resists vibration and impact.
- Utility & Industrial Carts β Compatible with lithium conversion kits for modern fleet upgrades.
- Low-Speed Electric Vehicles (LSVs) β Reliable charging for neighborhood EVs.
π‘ Why Choose the E22 72V 25A Golf Cart Charger?
- β True 25A output at 72V β Up to 66% faster than standard 15A chargers.
- β IP65 die-cast aluminum housing β Weatherproof, dustproof, and thermally efficient β ideal for outdoor storage.
- β Universal 100-240VAC input β Works worldwide without voltage selector.
- β Multi-chemistry support β Lead-Acid, LiFePO4, Lithium-ion with programmable charging algorithms.
- β Safety certified β Overload, overheat, short circuit, and reverse polarity protection.
- β Optional CAN/RS485 communication β Seamless integration with golf cart fleet management systems.
