Product Description
USB CAN-I CAN Bus Analyzer | High-Performance CAN Bus Debugger & Interface
The USB CAN-I CAN Bus Analyzer is a professional, industrial-grade tool for CAN bus network monitoring, data logging, and protocol analysis. It provides a seamless interface between a PC’s USB port and CAN bus networks, supporting CAN2.0A and CAN2.0B protocols with high-speed data throughput. Ideal for automotive diagnostics, industrial automation, battery management system (BMS) development, and embedded system debugging.
📡 Product Overview
This USB to CAN adapter converts USB signals to CAN bus and vice versa, enabling real-time communication with CAN networks. With 2500V isolation protection, a 5Kbps–1Mbps adjustable baud rate, and 14,000 frames per second capture capability, it meets the demands of both field testing and laboratory development. The compact 98×78×30mm enclosure makes it portable for on-site diagnostics.

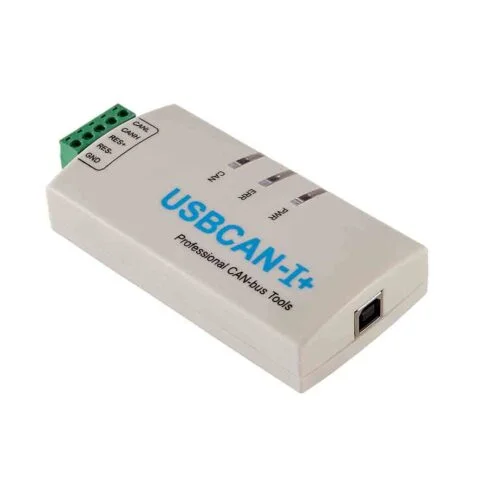

USB CAN-I CAN Bus Debugger – Compact, isolated, high‑performance CAN interface
⚙️ Hardware Parameters
- Protocol conversion: USB ↔ CAN bus
- USB interface: USB 2.0 (compatible with USB 1.1)
- CAN protocol support: CAN2.0A (standard frame) and CAN2.0B (extended frame)
- Transmission modes: Bidirectional – CAN sending and CAN receiving
- Frame types: Data frame, remote frame
- Baud rate: Selectable 5Kbps – 1Mbps, with register configuration for custom rates
- Isolation: Industrial-grade magnetic coupling, 2500V isolation voltage
- FIFO buffers: 32 hardware buffers per channel; single‑channel receive capacity up to 14,000 frames/sec
- Power supply: USB bus powered (no external power needed)
- System compatibility: Windows XP / 7 / 8 / 10 (32‑bit & 64‑bit)
- Operating temperature: -40°C to 85°C
- Dimensions: 98 × 78 × 30 mm
🔧 Typical Applications
🚗 Automotive Diagnostics
Monitor vehicle CAN networks, read ECU data, debug OBD2 systems, and analyze EV battery management systems (BMS).
🏭 Industrial Automation
Interface with industrial CANopen or DeviceNet networks for equipment monitoring, PLC communication, and factory automation.
📊 Data Logging & Analysis
Capture and record CAN bus traffic for offline analysis, performance testing, and protocol reverse engineering.
🛠️ Embedded Development
Debug CAN-based embedded systems, develop CAN firmware, and simulate network nodes during product development.
📦 Product Package Contents
- 1 × Dual-channel USBCAN I debugger
- 2 × CAN transfer boards (DB9 to terminal block / open wire)
- 1 × USB cable (PC to USBCAN debugger)
- 1 × Software CD or download access containing:
- USBCAN debugger tool software (GUI)
- Visual C++ / Visual Basic CAN test software source code
- DLL, LIB, and development files
- User manual and CAN bus reference materials
💻 Software & Development Support
The included software suite provides a user-friendly interface for sending/receiving CAN frames, logging data, and analyzing bus traffic. For developers, we supply DLL libraries, C/C++ source code examples, and VB samples to accelerate integration into custom applications. The tool supports real-time monitoring, frame filtering, and baud rate auto-detection.
We provide OEM/ODM services for CAN interface tools, including custom enclosures, labeling, and software integration. Contact our engineering team for bulk orders or specialized requirements.
