Product Description

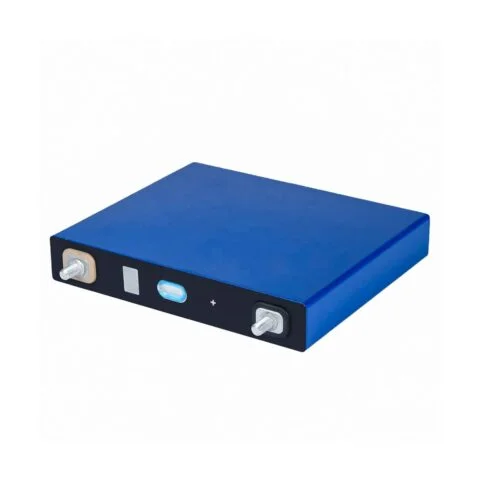

CATL LFP CB260 3.2V 150Ah LiFePO₄ Prismatic Battery Cell
Ultra-low internal resistance 0.34mΩ | 1C continuous charge/discharge | 2C/3C pulse | 3500+ cycles
The CATL CB260 150Ah LiFePO₄ cell meets the demands of high energy density, long driving range, safety, and reliability. It is widely applied in Battery Electric Vehicles (BEV), Plug-in Hybrid Electric Vehicles (PHEV), Hybrid Electric Vehicles (HEV), and Energy Storage Systems (ESS).
- ✅ Prismatic aluminum shell LiFePO₄ cells from CATL – premium quality
- ⚡ Supports continuous discharge rate of 1C and charge rate of 1C
- 📊 Excellent cell consistency – factory matched for series/parallel
- 🔋 Widely applied for special electric vehicles, energy storage, telecommunication, etc.
- 🔄 Long cycle life – 3500+ cycles @80% DoD
| Manufacturer | CATL (Contemporary Amperex Technology Co. Limited) | |
| Model | LFP CB260 – 150Ah Prismatic LiFePO₄ | |
| Nominal Voltage | 3.2V (25±2℃, 1C) | |
| Nominal Capacity | 150Ah (25±2℃, 1C) | |
| Energy | 480Wh (150Ah × 3.2V) | |
| Operating Voltage | 2.5V ~ 3.65V (T > 0℃) / 2.0V ~ 3.65V (T ≤ 0℃) | |
| Internal Resistance (AC, 1kHz) | 0.34 ± 0.05 mΩ (fresh cell, 30~40% SOC) | |
| Shipment Capacity | 60 ± 1Ah (pre-conditioned) | |
| Self-discharge Rate | ≤3.5% per month (25℃, 50% SOC) | |
| Standard Charge Current | 0.5C (75A) (25±2℃) | |
| Max. Continuous Charge Current | 1C (150A) (25±2℃) | |
| Charge Voltage | 3.65V (CC/CV) | |
| Standard Discharge Current | 75.0A (25±2℃) | |
| Max. Continuous Discharge Current | 150A (1C) – high power output | |
| Max. Pulse Discharge Current (long pulse) | 300A (2C) – 3 minutes | |
| Max. Pulse Discharge Current (short pulse) | 450A (3C) – 60s (SOC>40%) / 10s (SOC<40%), T<50℃ | |
| Discharge Cut-off Voltage | 2.5V (T>0℃) / 2.0V (T≤0℃) | |
| Cycle Life | ≥3500 cycles @80% DoD, 25℃, 1C/1C (80% capacity retention) | |
| Operating Temperature | Charge: 0℃ ~ 60℃ | Discharge: -30℃ ~ 60℃ | |
| Dimensions (L × W × H) | 200.33 × 207.2 × 33.4 mm | |
| Weight | 2.95 ± 0.3 kg (approx. 2.95kg) | |
1. Always use a BMS – monitor voltage, current, and temperature during charge/discharge.
2. Avoid heat & fire – keep away from heat sources, open flames, and corrosive chemicals.
3. No short circuit – never reverse polarity or short-circuit terminals with metal objects.
4. Do not mix cells – use cells of same model, capacity, and batch for pack assembly.
5. No mechanical abuse – do not crush, puncture, drop, or disassemble the cell.
6. Proper storage – store at 30%~50% SOC in cool, dry place away from direct sunlight.
7. Protective gear – wear insulated gloves when handling cells.
8. If damaged – immediately stop use if cell leaks, smokes, or deforms; contact supplier.
🔋 Applications: The CATL CB260 150Ah LiFePO₄ cell is ideal for electric vehicles (BEV, PHEV, HEV), energy storage systems (ESS), solar battery banks, telecommunication backup power, marine propulsion, and industrial equipment. With ultra-low internal resistance (0.34mΩ) and high thermal stability, it delivers exceptional energy density and safety. Grade A, brand new cells with full traceability. Contact us for bulk pricing, cell matching, and custom busbars.
