50V 23Ah Panasonic Lithium Battery Power for Electric bicycle Escooter Tricycle
Product Description

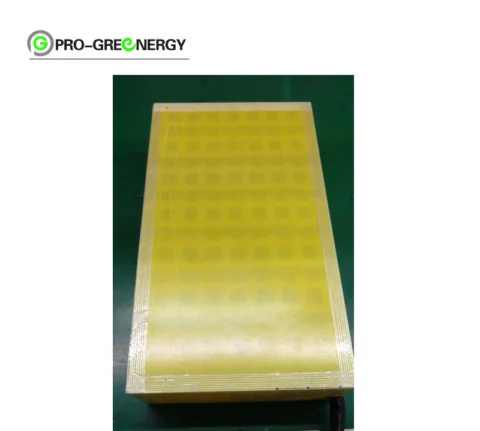

50V 23Ah High-Power E-Bike Battery Pack
14S8P Panasonic Lithium Battery | 40A Continuous Discharge | 60A Pulse
The 50V 23Ah lithium battery pack is a high-capacity power solution designed for electric bicycles, e-scooters, and custom electric vehicles. Featuring a 14S8P configuration with premium Panasonic ICR18650-2900 cells, it delivers exceptional power with 40A continuous discharge (60A pulse) and supports 10A fast charging. Ideal for 1500W–2000W motors, this pack offers extended range, robust performance, and advanced BMS protection for demanding applications.
📊 Technical Specifications
| Rated Capacity | 23.2Ah (5A standard charge / 20A discharge) |
|---|---|
| Nominal Voltage | 51.8V (14S) |
| Cell Type | Panasonic ICR18650-2900 (3.7V 2.9Ah) |
| Configuration | 14S8P (112 cells) |
| Weight | 6.5 ± 0.1 kg |
| Dimensions | Customizable (contact for specific size requirements) |
| Charge Voltage Limit | 58.8V |
| Standard Charge Current | 5A |
| Fast Charge Current | 10A |
| Standard Discharge Current | 5A |
| Max Continuous Discharge Current | 40A |
| Pulse Discharge Current (>10S) | 60A |
| Discharge Cut-off Voltage | 38.5V |
| Cycle Life | >500 cycles (80% DOD) |
⚡ Key Features
🔋 High Energy Density
23.2Ah capacity with 51.8V nominal voltage – delivers 1200Wh of energy, providing extended range for long-distance rides.
⚡ High Current Output
40A continuous discharge (60A pulse) supports high-power motors up to 2000W, delivering exceptional torque and acceleration.
🔋 Fast Charging Capability
Supports 10A fast charging (5A standard) – significantly reduces charging time for quick turnaround.
🛡️ Advanced BMS Protection
Integrated BMS provides over-charge, over-discharge, over-current, short circuit, over-temperature, and auto-balancing for maximum safety.
🔋 Premium Panasonic Cells
Built with Panasonic ICR18650-2900 cells (3.7V 2.9Ah) – known for superior reliability, consistency, and long cycle life.
📦 Customizable Dimensions
Size can be tailored to fit your specific battery enclosure – perfect for custom e-bike frames or unique installations.
🚲 Applications
- High-power electric bicycles (e-bikes) – 1500W, 2000W motor systems
- Electric scooters & mopeds – 48V–52V scooter platforms
- Electric motorcycles & light EVs – high-performance vehicles
- Custom EV projects – DIY conversions, solar storage, robotics
📦 Storage & Safety Guidelines
- Short-term storage (1 month): -20°C to 60°C
- Medium-term storage (6 months): -20°C to 45°C
- Long-term storage (12 months): -20°C to 35°C
- Always store at approximately 50% charge for extended periods.
- Use only a compatible 58.8V lithium battery charger.
- Avoid deep discharges below 38.5V to maximize cycle life.
- Charge within 0°C–45°C; discharge within -20°C–60°C.
We offer OEM/ODM services – customize capacity, dimensions, connectors, and BMS settings. Contact our engineering team for sample requests, technical documentation, and volume pricing.
