Product Description

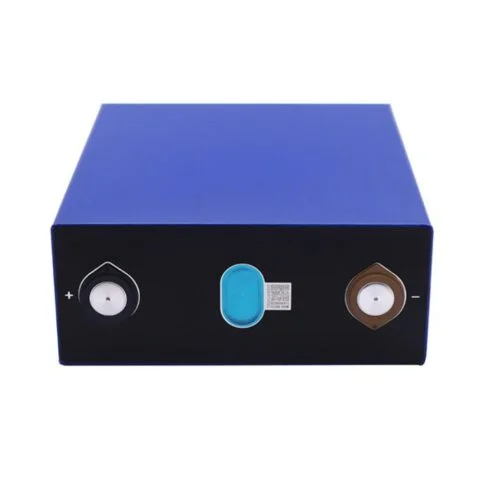

EVE LF304 | 3.2V 304Ah Grade A LiFePO₄ Prismatic Battery Cell
Brand New Grade A – the EVE LF304 3.2V 304Ah prismatic lithium iron phosphate (LiFePO₄) battery cell delivers industry-leading performance for electric vehicles, power tools, e‑scooters, RVs, yachts, and energy storage systems. With a robust aluminum casing, ultra‑low internal resistance, and exceptional cycle life, this cell is engineered for high‑power and high‑energy applications.
🔋 Battery Features
✅ A Grade & Fully Tested
100% brand new cells with individual test reports. Full traceability with QR codes.
🛡️ Ultra Safe LiFePO₄ Chemistry
No thermal runaway, no fire, no explosion – the safest lithium battery chemistry available.
⚡ High Power Performance
1C continuous charge/discharge, 2C pulse current (30s) – ideal for high‑demand applications.
📈 High Energy Density
304Ah capacity in a compact prismatic format – maximizes energy storage per unit volume.
🔄 Long Cycle Life
>3500 cycles at 25°C, >1800 cycles at 45°C – reliable for years of service.
🌡️ Wide Operating Temperature
Charge from 0°C to 60°C, discharge from -30°C to 60°C – suitable for diverse environments.
📊 Technical Specifications
| Model Number | EVE-LF304 |
|---|---|
| Nominal Voltage | 3.2V |
| Nominal Capacity | 304Ah |
| Cycle Life (25°C) | >3500 cycles (80% DOD) |
| Cycle Life (45°C) | >1800 cycles |
| Working Voltage | 2.5V – 3.65V |
| Internal Resistance | ≤0.5mΩ |
| End of Discharge Voltage | 2.5V |
| Charge Method | CC/CV |
| Standard Charge/Discharge Current | 0.5C / 0.5C |
| Continuous Charge/Discharge Current | 1C / 1C |
| Pulse Charge/Discharge Current (30s) | 2C / 2C |
| Recommended SOC Window | 10% – 90% |
| Charging Temperature | 0°C ~ 60°C |
| Discharging Temperature | -30°C ~ 60°C |
| Dimensions (L×W×H) | 173.5 × 72.0 × 208.8 mm |
| Weight | 5.49 kg |
| Shell Material | Aluminum (prismatic) |
📦 Applications
🚗 Electric Vehicles (EV)
Passenger cars, commercial EVs, and high‑performance electric motorcycles.
🔋 Energy Storage Systems (ESS)
Residential solar storage, commercial backup, and off‑grid power solutions.
🚤 Marine & RV
Yachts, sailboats, RVs, and camper vans – lightweight, long‑lasting power.
⚙️ Industrial & Power Tools
High‑drain equipment, electric forklifts, and heavy‑duty tools.
📋 EVE LiFePO₄ Battery Cell Model Comparison
| Model | Capacity | Internal Resistance | Weight | Dimension (mm) |
|---|---|---|---|---|
| LF32 | 32Ah | 1.5mΩ | 725±50g | 148.3×26.7×94.3 |
| LF50K | 50Ah | 0.7mΩ | 1.4kg | 185.3×135.3×29.3 |
| LF50F | 50Ah | 0.5mΩ | 1.05kg | 148.3×26.7×129.8 |
| LF80 | 80Ah | 0.7mΩ | 1.395kg | 135×29.3×185 |
| LF90K | 90Ah | 0.5mΩ | 2.0kg | 200.5×130.3×36.7 |
| LF100MA | 100Ah | 0.5mΩ | 1.92kg | 118.5×115.7×97.0 |
| LF100LA | 100Ah | 0.5mΩ | 1.98kg | 118.5×160×50 |
| LF105 | 105Ah | 0.5mΩ | 2.0kg | 200.5×130.3×36.7 |
| LF230 | 230Ah | 0.5mΩ | 4.14kg | 207.2×53.85×173.93 |
| LF280K | 280Ah | 0.25mΩ | 5.42kg | 207.5×173.7×72 |
| LF304 | 304Ah | 0.5mΩ | 5.49kg | 208.8×173.5×72 |
We offer flexible customization: laser welding, busbar assembly, and pre‑assembled modules. Contact our engineering team for bulk pricing, sample requests, or to discuss your specific project requirements.
