Product Description

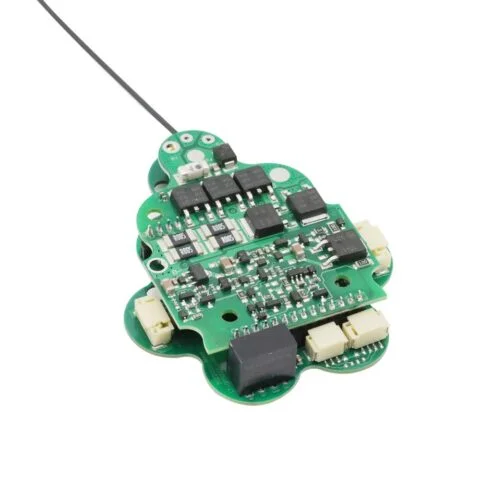

GP10S094 | 10S 36V CANBUS/UART Smart BMS
For Bafang & Ananda Motor Systems | 7S–10S Li‑ion | 15A Continuous Discharge
The GP10S094 Smart Battery Management System (BMS) is a cutting‑edge solution designed for 7S to 10S lithium‑ion battery packs (24V and 36V nominal), specifically optimized for Bafang and Ananda electric motor systems. With dual CANBUS and UART communication, 15A continuous discharge current, and advanced AFE TI BQ Series + MCU architecture, it delivers precise monitoring, robust protection, and seamless integration. Ideal for e‑bikes, electric scooters, and light electric vehicles, this BMS includes SOC/SOH fuel gauging, adjustable parameters, E‑switch, sleep mode, and comprehensive fault protections.
📡 General Info
The GP10S094 Smart BMS is a high‑performance, software‑configurable battery management system supporting 7S to 10S Li‑ion cells (24V–36V). It features CANBUS and UART communication interfaces, enabling real‑time data exchange with Bafang and Ananda motor controllers, displays, and monitoring systems. This makes it an ideal drop‑in solution for e‑bikes and light EVs requiring advanced battery management and integration with manufacturer protocols. Its compact design and adjustable parameters ensure compatibility with a wide range of battery packs and applications.
⚙️ Key Features & Functions
📡 Dual Communication: CANBUS & UART
Seamless integration with Bafang and Ananda motor systems via CANBUS or UART. Real‑time data exchange for SOC, voltage, current, and temperature monitoring.
🔋 15A Continuous Discharge
15A continuous current capability supports e‑bike motors and light electric vehicles, ensuring reliable power delivery.
🧠 AFE TI BQ Series + MCU
Texas Instruments Analog Front‑End combined with a powerful MCU ensures high‑precision voltage, current, and temperature measurement for optimal battery control.
⚙️ Adjustable Parameters
Customize voltage thresholds, current limits, and protection settings to match specific battery chemistries and application requirements.
📊 SOC Fuel Gauge & SOH Monitoring
Accurate State of Charge (SOC) and State of Health (SOH) estimation for real‑time capacity tracking and predictive maintenance.
🔘 E‑Switch & Sleep Mode
Convenient power control and ultra‑low power consumption during standby, preserving battery energy for extended idle periods.
🛡️ Comprehensive Protections
Over‑charge, over‑discharge, over‑current, short circuit, high‑temperature, and low‑temperature protections ensure safe and reliable operation.
📦 Compact & Lightweight
Optimized for integration into e‑bike battery enclosures, with dimensions suitable for downtube and rear‑rack battery packs.
📊 Technical Specifications
- Model: GP10S094
- Cell Series Support: 7S – 10S Li‑ion (24V, 36V)
- Continuous Discharge Current: 15A
- Charge Current: Configurable (common or separate port)
- Communication Protocols: CANBUS, UART
- Monitoring: Real‑time voltage, current, SOC, SOH, temperature
- Controller: AFE TI BQ Series + MCU
- Adjustable Parameters: Voltage thresholds, current limits, protection delays
- Additional Functions: E‑switch, sleep mode, SOC fuel gauge, SOH indicator
- Working Temperature: -20°C to 70°C
🔋 About SOC & Communication
The GP10S094 BMS integrates a sophisticated State of Charge (SOC) fuel gauge and State of Health (SOH) monitoring system. Using advanced algorithms combined with the AFE TI BQ Series, it provides highly accurate remaining capacity and battery health data. The CANBUS and UART communication allow seamless connection to Bafang and Ananda motor controllers, displays, and telemetry systems, enabling real‑time monitoring and control for an enhanced riding experience.
🔧 Applications
🚲 Electric Bicycles (e‑Bikes)
Ideal for 36V e‑bike battery packs, especially those using Bafang or Ananda motor systems, providing precise battery management and communication.
🛴 Electric Scooters
Perfect for 24V‑36V scooter batteries requiring CANBUS or UART integration for dashboards and controllers.
⚡ Light Electric Vehicles (LEVs)
Suitable for small EVs, cargo bikes, and other light mobility solutions requiring 15A continuous current and smart communication.
🖼️ Product Gallery
We offer OEM/ODM services for the GP10S094 platform – customize current ratings, communication protocols, and physical layout. Contact our engineering team for sample requests, technical documentation, and volume pricing.
