Product Description
LT-GP06S015 | 6S 60A Drone BMS with CANBus Communication
ST MCU + BQ AFE | Flying & Silent Modes | UAV Battery Management System
The LT-GP06S015 Battery Management System (BMS) is a high‑performance, intelligent solution specifically engineered for UAVs, drones, and high‑power battery packs. Featuring CANBus communication, an ST Microcontroller Unit (MCU), and a BQ Analog Front‑End (AFE), it delivers precise monitoring, robust protection, and flexible configuration. With 60A continuous discharge/charge capability and dual operating modes (Flying & Silent), this BMS optimizes flight performance while ensuring maximum safety and battery longevity.
🚁 General Info & Compatibility
The LT-GP06S015 BMS is purpose‑built for 6S lithium‑ion battery packs (22.2V nominal), commonly used in professional UAVs, agricultural drones, and high‑performance consumer drones. Its CANBus interface enables seamless integration with flight controllers, telemetry systems, and ground control stations, providing real‑time battery data (voltage, current, temperature, SOC) for enhanced situational awareness and safety.
⚙️ Key Features
📡 CANBus Communication
Seamless integration with UAV flight controllers, telemetry modules, and CAN‑based ground stations. Real‑time data exchange for mission‑critical monitoring.
🔋 High Current Handling
60A continuous discharge and charge current supports demanding drone operations, including high‑power motors, heavy payloads, and rapid climbs.
🎮 Dual Operating Modes
Flying Mode – optimized for high‑power output during flight.
Silent Mode – ultra‑low power consumption for storage and transport, preserving battery health.
🧠 ST MCU + BQ AFE Architecture
Combines an STMicroelectronics MCU with a Texas Instruments BQ AFE for accurate voltage, current, and temperature measurement, ensuring reliable cell balancing and protection.
💡 LED Status Indicators
Integrated LED indicators provide instant visual feedback on battery status, SOC, and fault conditions, simplifying pre‑flight checks.
🔧 Flexible Parameter Adjustment
Voltage thresholds, current limits, and protection settings can be customized to match specific battery chemistries and application requirements.
📊 Technical Specifications
- Model: LT-GP06S015
- Cell Series: 6S Li‑ion / Li‑Po (22.2V nominal)
- Continuous Discharge Current: 60A
- Continuous Charge Current: 60A
- Communication: CANBus (CAN 2.0 compatible)
- Controller: ST Microcontroller (MCU)
- Analog Front‑End: Texas Instruments BQ series AFE
- Operating Modes: Flying Mode / Silent Mode
- Indicators: Multi‑color LED for status and SOC
- Protections: Over‑charge, over‑discharge, over‑current, short circuit, over‑temperature (with NTC sensor)
- Balancing: Passive cell balancing
- Dimensions: Compact design optimized for drone battery enclosures
- Operating Temperature: -20°C to 70°C
🛸 Applications
✈️ Professional UAVs
Ideal for mapping, surveying, inspection, and cargo drones requiring reliable battery management and real‑time data.
🚁 Agricultural Drones
Supports high‑current spraying and spreading operations with robust thermal and electrical protection.
🏆 Racing & FPV Drones
High‑discharge capability and fast response for competitive drone racing and freestyle flying.
🔋 High‑Performance Battery Packs
Custom battery builds for industrial and hobby applications requiring CANBus integration and advanced monitoring.

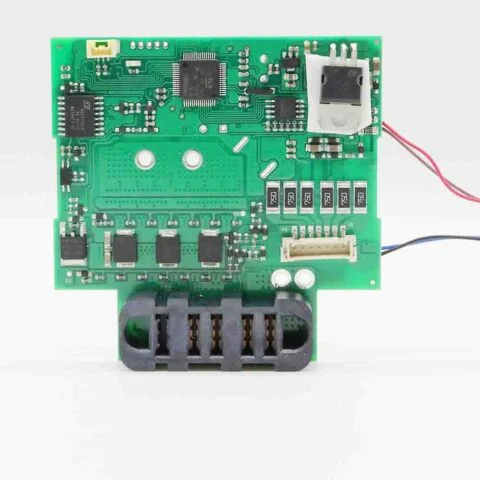

🖼️ Product Gallery
We offer OEM/ODM services for the LT-GP06S015 platform. Customize current ratings, communication protocols, and physical dimensions to match your specific UAV battery pack. Contact our engineering team for sample requests, technical documentation, and volume pricing.
