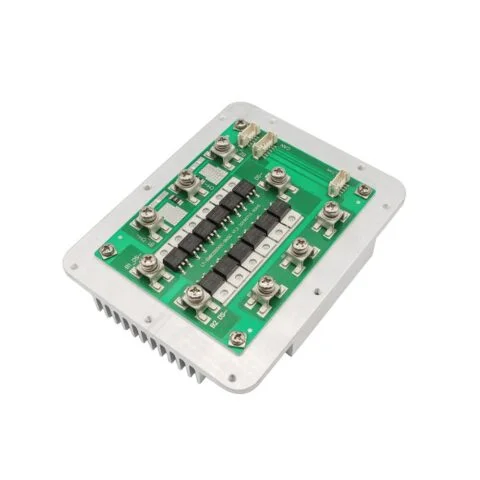

EMB20S002C | Parallel BMS PCB for Lithium Batteries
60A Current Handling | Balanced Charging & Discharging | Compact 120×93mm
The EMB20S002C Battery Management System (BMS) is a specialized PCB designed for connecting lithium batteries in parallel configurations. It addresses the critical challenges of parallel battery operation — ensuring balanced charging and discharging, equal current sharing, and comprehensive protection across multiple battery modules. With a maximum current handling capacity of 60A and a compact 120×93mm form factor, this BMS is ideal for scalable energy storage systems, backup power banks, electric vehicle battery expansions, and industrial battery racks.
📡 General Info – Why Use a Parallel BMS?
Connecting lithium batteries in parallel increases capacity and runtime but introduces risks such as circulating currents, uneven charge/discharge, and potential overloading. The EMB20S002C BMS solves these issues by actively managing each parallel branch, ensuring that current is distributed evenly and that all modules operate within safe limits. It monitors voltage, current, and temperature in real time, and provides overcharge, over-discharge, over-current, and short circuit protections, significantly enhancing safety and extending the lifespan of your parallel battery system.
⚙️ Key Features
🔗 Dedicated for Parallel Connection
Specifically engineered to handle the complexities of parallel battery configurations, ensuring balanced current sharing and preventing cross‑charging between modules.
⚡ 60A High Current Handling
Supports up to 60A continuous current, making it suitable for high‑capacity battery banks and demanding applications.
📊 Real‑Time Monitoring
Monitors voltage, current, and temperature across parallel branches, providing accurate data for optimal control and protection.
🛡️ Comprehensive Protections
Over‑charge, over‑discharge, over‑current, and short circuit protections ensure the safety and longevity of your parallel battery system.
📏 Compact Size
Dimensions: 120 × 93 mm — easily integrates into battery enclosures, racks, or cabinets without requiring excessive space.
🔧 Robust & Reliable
Designed for industrial and residential energy storage applications, with a robust build and built‑in safety mechanisms for long‑term reliability.
📊 Technical Specifications
- Model: EMB20S002C
- Application: Parallel connection of lithium batteries (Li‑ion / LiFePO₄)
- Maximum Current Handling: 60A (continuous)
- Balancing: Active/passive balancing for parallel branches
- Monitoring: Voltage, current, temperature (NTC sensor support)
- Protections: Over‑charge, over‑discharge, over‑current, short circuit, over‑temperature
- Dimensions (L×W): 120 × 93 mm
- Operating Temperature: -20°C to 70°C
🔧 How to Connect Lithium Batteries in Parallel (Using EMB20S002C)
For detailed instructions, refer to our comprehensive guide: How to Connect Lithium Batteries in Parallel. In summary, the EMB20S002C simplifies parallel connection by:
- Connecting each battery module’s positive and negative terminals to the BMS’s designated parallel ports.
- Ensuring that charge and discharge currents are shared equally among all modules.
- Automatically balancing the state of charge across modules to prevent mismatches.
- Providing a single output interface for the combined battery bank.
