Product Description

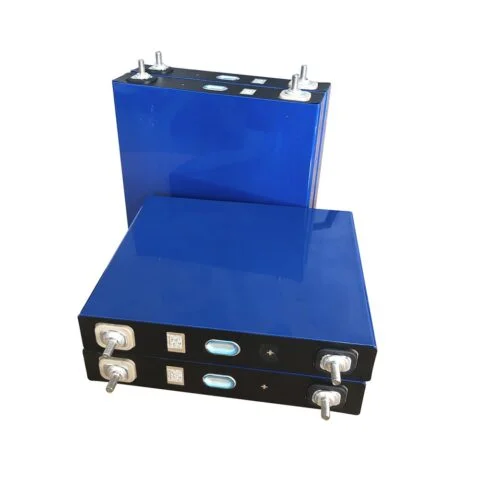

CATL 3.2V 100Ah LiFePO₄ Battery Cell with Screws for Easy Connection
Module: 001CB270 | 0.39mΩ internal resistance | 1C continuous charge/discharge | Wide temperature range -30°C~55°C
We now offer a specially customized CATL 3.2V 100Ah LiFePO₄ battery cell with pre-installed screws for easy connection. This cell features long cycle life, high energy density, and a wide operating temperature range. The screw terminals eliminate the need for welding, making it ideal for DIY battery packs, energy storage systems, and quick assembly.
| Manufacturer | CATL (Contemporary Amperex Technology Co. Limited) | |
| Module / Model | 001CB270 – 3.2V 100Ah Prismatic LiFePO₄ | |
| Typical Capacity | 100 Ah (at 0.5C, 25°C) | |
| Nominal Voltage | 3.2V (LiFePO₄ chemistry) | |
| Energy | 320Wh (100Ah × 3.2V) | |
| Internal Resistance (AC, 1kHz) | 0.39 ± 0.05 mΩ (ultra-low) | |
| Operating Voltage | 2.5V ~ 3.65V (standard) / 2.0V ~ 3.65V (low temp) | |
| Shipping Capacity | 40 ± 1Ah (pre-conditioned for storage) | |
| Residual Capacity (self-discharge) | ≤3.5% per month at 25°C, 50% SOC | |
| Charging Temperature | 0°C ~ 55°C | |
| Discharging Temperature | -30°C ~ 55°C (excellent low-temp performance) | |
| Storage Temperature | -30°C ~ 60°C (short term) / -20°C ~ 35°C (long term) | |
| Standard Charge / Discharge Current | 0.5C (50A / 50A) (0.5C) | |
| Max. Continuous Charge Current | 1C (100A) (fast charge capable) | |
| Max. Continuous Discharge Current | 1C (100A) (high power output) | |
| Typical Dimensions (W × H × T) | 200.33 × 172.2 × 33.22 mm ±0.5mm (thin profile) | |
| Weight | 2.27 ± 0.30 kg (approx. 2.27kg) | |
- 🔩 Screw terminals pre-installed – no welding required, saves assembly time and ensures reliable contact
- 🔋 High energy density – 320Wh per cell in compact size
- 🔄 Long cycle life – >3000 cycles @80% DoD (typical CATL quality)
- ❄️ Low-temperature discharge – operates down to -30°C
- 📊 Excellent cell consistency – factory matched for series/parallel configurations
- 📄 Full traceability – original QR code and test reports available
1. Always use a BMS – monitor voltage, current, and temperature during charge/discharge.
2. Avoid heat & fire – keep away from heat sources, open flames, and corrosive chemicals.
3. No short circuit – never reverse polarity or short-circuit terminals with metal objects.
4. Do not mix cells – use cells of same model, capacity, and batch for pack assembly.
5. No mechanical abuse – do not crush, puncture, drop, or disassemble the cell.
6. Proper storage – store at 30%~50% SOC in cool, dry place away from direct sunlight.
7. Protective gear – wear insulated gloves when handling cells.
8. If damaged – immediately stop use if cell leaks, smokes, or deforms; contact supplier.
🔋 Applications: The CATL 100Ah LiFePO₄ cell with screw terminals is ideal for DIY battery packs, electric vehicles (EVs), energy storage systems (ESS), solar battery banks, golf carts, marine applications, UPS backup, and telecommunications. The pre-installed screws simplify assembly and maintenance, making it a top choice for system integrators and hobbyists. Grade A, brand new cells with full traceability. Contact us for bulk pricing, cell matching, and custom busbars.
