Product Description

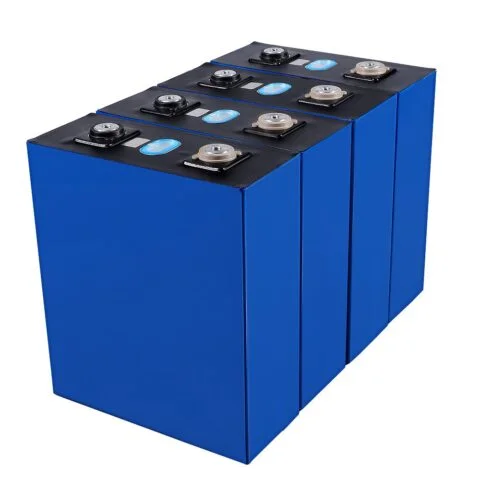

CATL LFP 6LH3L7 3.2V 240Ah LiFePO₄ Prismatic Battery Cell
Ultra-low internal resistance ≤0.15mΩ | 2C continuous discharge | 1C charge | 3000+ cycles
CATL 240Ah LFP cells meet the demands of high energy density, long driving range, safety, and reliability. They are widely applied in Battery Electric Vehicles (BEV), Plug-in Hybrid Electric Vehicles (PHEV), Hybrid Electric Vehicles (HEV), and Energy Storage Systems (ESS).
- 🔋 Prismatic aluminum shell LiFePO₄ cells from CATL – premium quality
- ⚡ Supports continuous discharge rate of 2C and charge rate of 1C
- 📊 Excellent cell consistency – factory matched for series/parallel configurations
- 🔧 Widely applied for special electric vehicles, energy storage, telecommunication, etc.
- 🔄 Long cycle life – 3000+ cycles @80% DoD
| Manufacturer | CATL (Contemporary Amperex Technology Co. Limited) | |
| Model | LFP 6LH3L7 – 240Ah Prismatic LiFePO₄ | |
| Nominal Capacity | 240Ah (0.2C, 25°C) | |
| Nominal Voltage | 3.2V (LiFePO₄ chemistry) | |
| Energy | 768Wh (240Ah × 3.2V) | |
| Internal Resistance (AC, 1kHz) | ≤0.15mΩ (ultra-low) | |
| Operating Voltage | 2.5V ~ 3.65V (standard) / 2.0V ~ 3.65V (low temp) | |
| Standard Charge Current | 120A (0.5C) / 240A (1C) max continuous | |
| Charge Voltage | 3.65V (CC/CV) | |
| Standard Discharge Current | 120A (0.5C) / 240A (1C) nominal / 480A (2C) max continuous | |
| Discharge Cut-off Voltage | 2.5V (T>0°C) / 2.0V (T≤0°C) | |
| Cycle Life | ≥3000 cycles @80% DoD, 1C/1C, 25°C (80% capacity retention) | |
| Charging Temperature | 0°C ~ +60°C | |
| Discharging Temperature | -30°C ~ +60°C (excellent low-temp performance) | |
| Storage Temperature (≤1 month) | -20°C ~ +45°C | |
| Storage Temperature (≥6 months) | -20°C ~ +35°C | |
| Dimensions (L × W × H) | 71.3 × 173.9 × 207 mm (thin prismatic design) | |
| Weight | 5.1 kg ± 10g (approx. 5.1kg) | |
1. Always use a BMS – monitor voltage, current, and temperature during charge/discharge.
2. Avoid heat & fire – keep away from heat sources, open flames, and corrosive chemicals.
3. No short circuit – never reverse polarity or short-circuit terminals with metal objects.
4. Do not mix cells – use cells of same model, capacity, and batch for pack assembly.
5. No mechanical abuse – do not crush, puncture, drop, or disassemble the cell.
6. Proper storage – store at 30%~50% SOC in cool, dry place away from direct sunlight.
7. Protective gear – wear insulated gloves when handling cells.
8. If damaged – immediately stop use if cell leaks, smokes, or deforms; contact supplier.
🔋 Applications: The CATL 6LH3L7 240Ah LiFePO₄ cell is ideal for electric vehicles (BEV, PHEV, HEV), energy storage systems (ESS), solar battery banks, telecommunication backup power, marine propulsion, and industrial equipment. With ultra-low internal resistance (≤0.15mΩ) and 2C continuous discharge capability, it delivers exceptional power density and thermal stability. Grade A, brand new cells with full traceability. Contact us for bulk pricing, cell matching, and custom busbars.
