Product Description

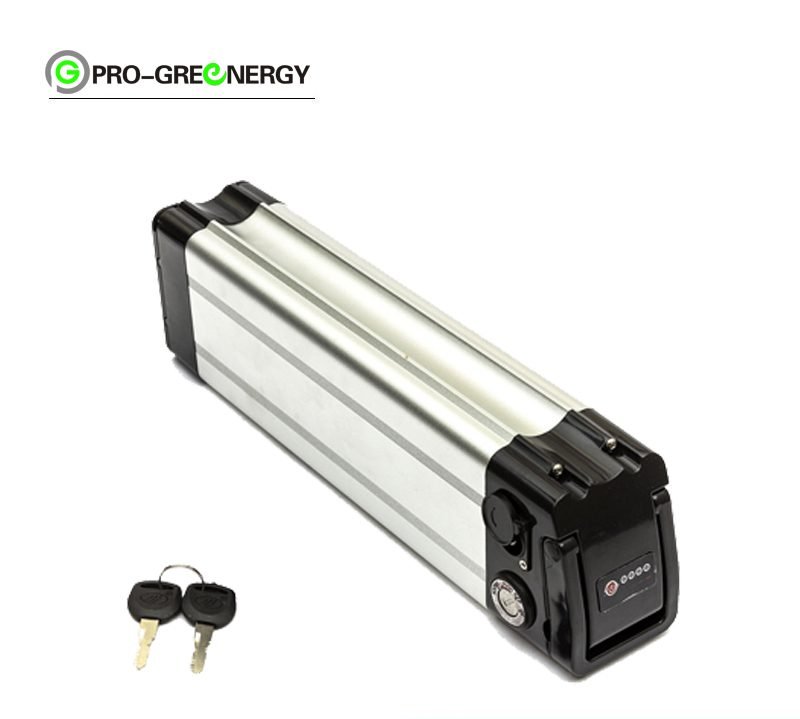

36V 12Ah E-Bike Battery Pack
10S6P Lithium Battery | 10A Continuous | 20A Pulse | 500+ Cycles
The 36V 12Ah lithium battery pack is a reliable power solution designed for electric bicycles, e-scooters, and light electric vehicles. Featuring a 10S6P configuration with high-quality ICR18650-2000 cells, it delivers consistent power with 10A continuous discharge (20A pulse) and supports 500+ cycle life. Built with an intelligent BMS, this pack ensures safety, longevity, and reliable performance for 250W–500W e-bike systems.
📊 Technical Specifications
| Rated Capacity | 12Ah (2A standard charge / 5A discharge)
|
|---|---|
| Nominal Voltage | 36V (10S) |
| Cell Type | ICR18650-2000 (3.7V 2Ah) |
| Configuration | 10S6P (60 cells) |
| Weight | 6.5 ± 0.1 kg |
| Dimensions (L×W×H) | 115 × 75 × 385 mm |
| Charge Voltage Limit | 42V |
| Standard Charge Current | 2A |
| Fast Charge Current | 5A |
| Standard Discharge Current | 5A |
| Max Continuous Discharge Current | 10A |
| Pulse Discharge Current | 20A |
| Discharge Cut-off Voltage | 30V |
| Cycle Life | >500 cycles (80% DOD) |
⚡ Key Features
🔋 Reliable Capacity
12Ah capacity with 36V nominal voltage – delivers 432Wh of energy, providing sufficient range for daily commuting and leisure rides.
⚡ Optimized Power Output
10A continuous discharge (20A pulse) supports 250W–500W e-bike motors, delivering smooth acceleration and consistent performance.
🔋 Fast Charging Support
Supports 5A fast charging (2A standard) – reduces charging time for quick turnaround.
🛡️ Advanced BMS Protection
Integrated BMS provides over-charge, over-discharge, over-current, short circuit, over-temperature, and auto-balancing for maximum safety.
🔋 Quality 18650 Cells
Built with ICR18650-2000 cells (3.7V 2Ah) – known for stable performance and long cycle life.
📦 Standard Downtube Design
Dimensions: 115×75×385 mm – fits most standard downtube battery compartments for easy installation.
🚲 Applications
- Electric bicycles (e-bikes) – 250W, 350W, 500W motor systems
- Electric scooters & mopeds – 36V scooter platforms
- Light electric vehicles (LEVs) – e-tricycles, cargo bikes, pedelecs
- Custom EV projects – DIY conversions, solar storage, backup power
📦 Storage & Safety Guidelines
- Short-term storage (1 month): -20°C to 60°C
- Medium-term storage (6 months): -20°C to 45°C
- Long-term storage (12 months): -20°C to 35°C
- Always store at approximately 50% charge for extended periods.
- Use only a compatible 42V lithium battery charger.
- Avoid deep discharges below 30V to maximize cycle life.
- Charge within 0°C–45°C; discharge within -20°C–60°C.
We offer OEM/ODM services – customize capacity, dimensions, connectors, and BMS settings. Contact our engineering team for sample requests, technical documentation, and volume pricing.
