Product Description

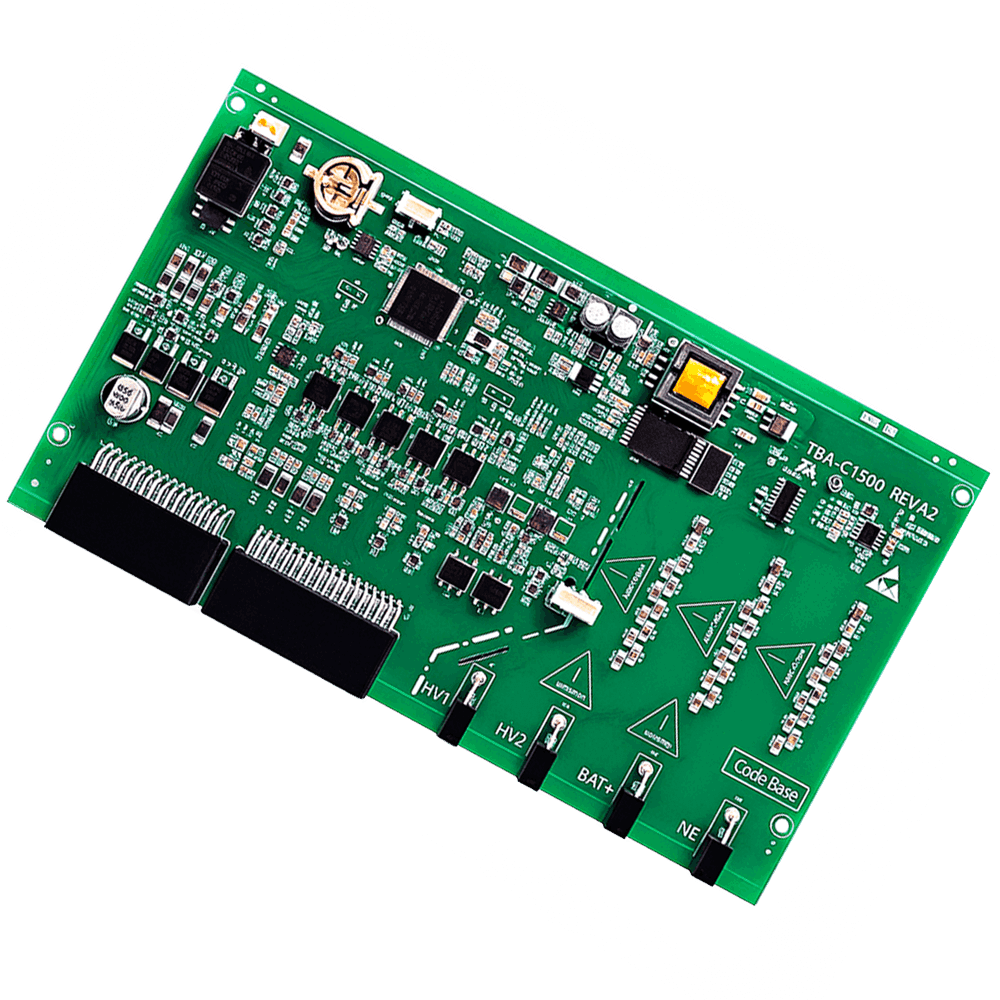

TBA-C1500 BCU Level‑2 Master Control
Cloud & Mobile App
Remote OTA
Multi‑Cluster (≤16)
Key Features
- 2nd / 3rd level control architecture – modular design, flexible system configuration
- Mobile App & Cloud Platform – cloud security management, collaborative balancing, remote OTA updates
- Rich external interfaces – dry contacts, RS485, CAN, TCP, etc. Supports single‑cluster or multi‑cluster parallel control (up to 16 clusters)
- Comprehensive protection – insulation detection, auto‑addressing, over/under voltage, overcurrent, overtemperature, balancing
- High precision – voltage: ≤±0.5% FSR, current: ±2% (≤1A error within 50A), temperature: ≤±2°C
- Data logging – 1000 records (expandable)
- Wide operating range – -40°C ~ +125°C
- Flexible upgrade – local or remote (OTA) firmware update
Designed for System‑Level Intelligence
The TBA-C1500 BCU acts as the secondary master control unit in a hierarchical BMS architecture. It collects data from multiple slave BMUs (like TBA-M16S), performs system‑level protection and balancing, and communicates with inverters, cloud platforms, and user interfaces.
Typical applications: Industrial & commercial ESS (100kWh ~ MWh), high‑voltage residential storage (up to 1500V), and modular battery banks requiring multi‑cluster parallel operation.
Cluster scalability: Supports up to 16 parallel battery clusters with coordinated control.
Technical Specifications
| Parameter | TBA-C1500 |
|---|---|
| Model | TBA-C1500 |
| Category | Level‑2 Master Control Unit (BCU) |
| Operating Voltage | 12V / 24V DC (external supply) |
| Supported Clusters | ≤16 clusters (parallel control) |
| Operating Temperature Range | -40°C ~ +125°C |
| Data Storage Capacity | 1000 records (expandable) |
| Voltage Detection Accuracy | ≤ ±0.5% FSR (full scale range) |
| Current Detection Accuracy | ±2%; error ≤1A within 50A range |
| Temperature Detection Accuracy | ≤ ±2°C |
| Communication Interfaces | SPI, CAN, RS485, Ethernet; Optional: WiFi / 4G / Bluetooth |
| Basic Functions | Insulation detection, auto‑addressing, over/under voltage protection, overcurrent protection, overtemperature protection, cell balancing |
| Upgrade Method | Local (direct) / Remote OTA (over‑the‑air) |
| External Interfaces | Dry contacts, RS485, CAN, TCP, optional wireless modules |
| Control Modes | Single‑cluster or multi‑cluster parallel operation |
Why TBA-C1500 is Your Ideal BCU
Real‑time monitoring, remote OTA, cloud‑based security and collaborative balancing.
Parallel control of up to 16 battery clusters – perfect for large C&I projects.
Powerful processor ensures fast response, precise data acquisition, and reliable system coordination.
Seamless System Integration
The TBA-C1500 BCU supports multiple communication protocols (CAN, RS485, RS232, Ethernet, optional wireless) making it compatible with all mainstream inverter brands (SMA, GoodWe, Growatt, Deye, Victron, etc.). Its modular design allows a 2‑level or 3‑level BMS architecture, adapting to projects from small residential systems to large industrial storage farms.
Dry contacts and I/O ports enable external alarm signaling, relay control, and integration with fire safety systems.
